Phase Check in a Flash!

“ The tester was MUCH cheaper and just as effective as the CNC repairman that charged me for four hours to connect some machines. Worked perfectly, even has alligator clips included!” - Larry V.

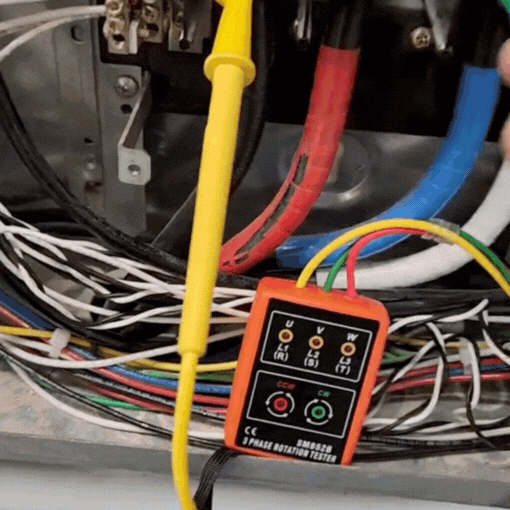

Why Get Our 3 Phase Sequence Presence Rotation Tester?

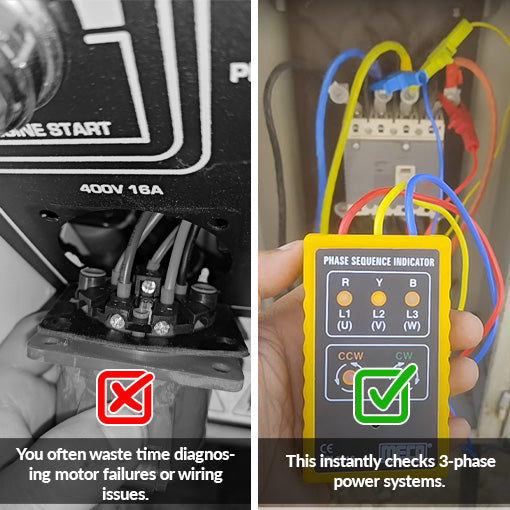

✅Instant LED and Buzzer Feedback: Get immediate results the moment you connect the clips. Green means correct rotation. Red means reverse. No light or tone means a phase is missing. You don’t need to second-guess what you see.

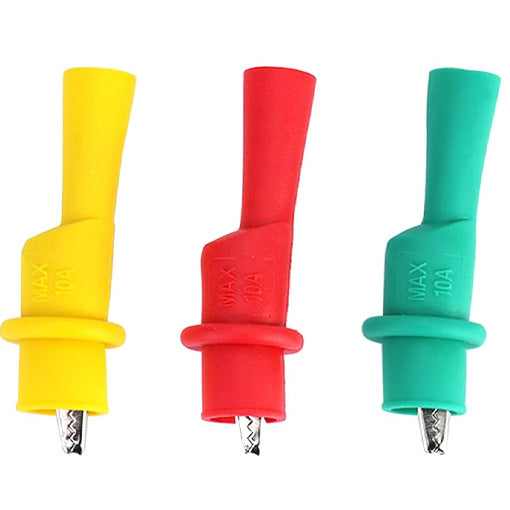

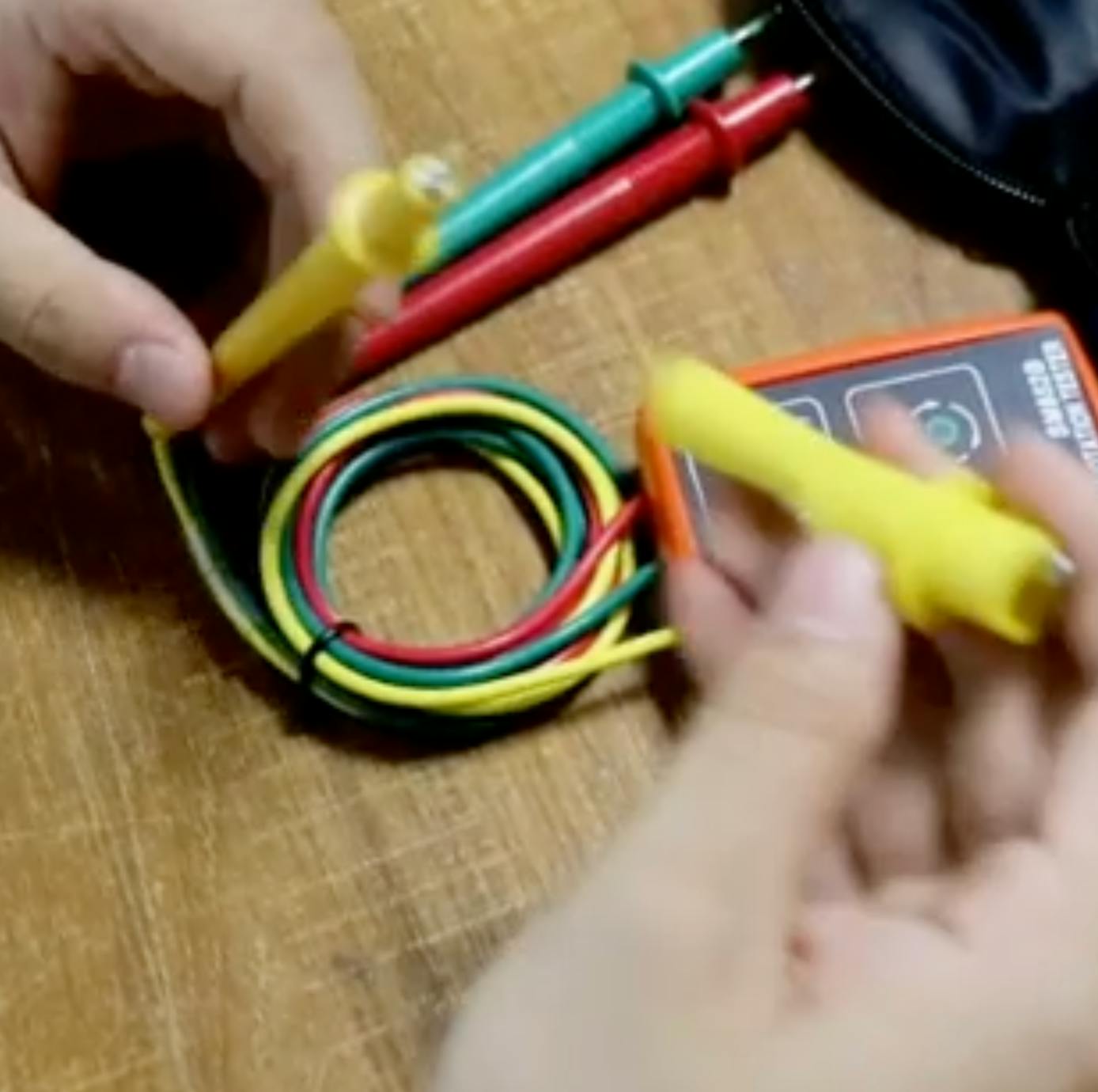

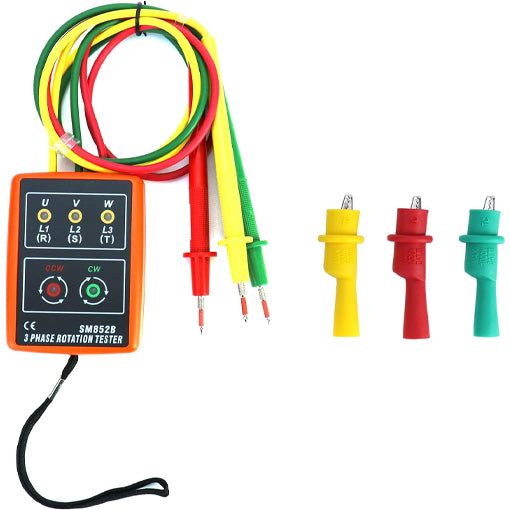

✅Easy Clip-On Testing: The alligator clips make setup fast. Just connect the three color-coded leads to the power lines. No extra calibration or setup needed.

✅Handles Wide Voltage and Frequency: Covers 60V to 600V AC and works in 20 to 400 Hz ranges. You can use it on a variety of power systems without switching testers.

✅Built for Electrical Safety: With a 2000V protection rating and 4000V impulse resistance, it guards against surges. The leads are double-insulated and long enough for safe spacing.

📓FREQUENTLY ASKED QUESTIONS

Q: How do I know if the phase sequence is correct?

A: The LED indicators and buzzer provide instant feedback. A specific LED pattern shows the correct sequence, and the buzzer sounds when the connection is valid.

Q: Can I use it continuously?

A: You can use it for up to 60 minutes at 60V AC. At 600V AC, limit use to a maximum of 4 minutes to avoid overheating.

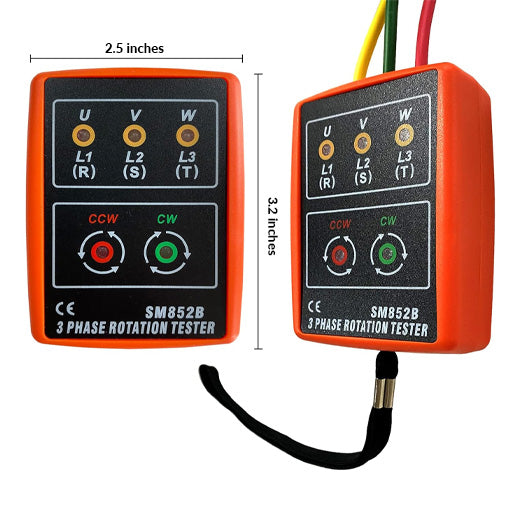

⚙️ Specifications:

• Color: Orange

• Item Weight:

• Material: Plastic and Metal

• Test Lead: 3.3 feet

• Operating Voltage: 60V ~ 600V AC, three phase

• Limit Support Voltage: 2000V/min

• Impulse Voltage Protection: 4000V

• Operating Frequency Range: 20Hz ~ 400Hz

• Continuous Use Time:
  – Up to 60 minutes at 60V AC
  – Up to 4 minutes at 600V AC

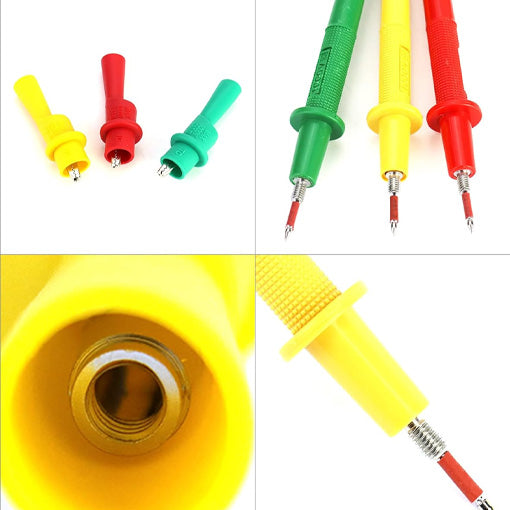

• Test Lead Length: Approximately 1 meter (3.3 feet), with double insulation

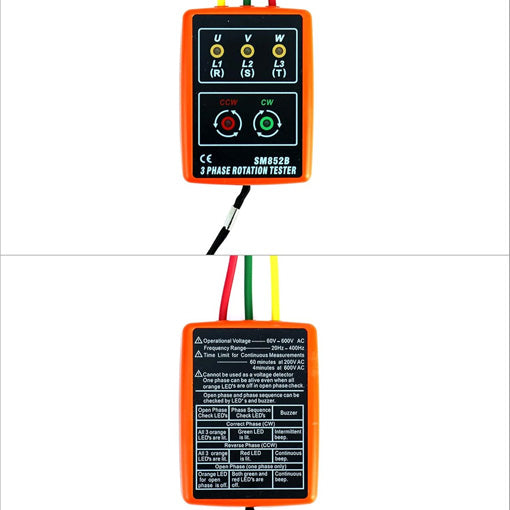

  Indicators:
  – LED lights show phase sequence and open phase presence
  – Buzzer provides audio confirmation
  Operating Temperature: -10°C to 60°C (14°F to 140°F)

• Compatibility: Suitable for industrial and field testing with up to 60 minutes of operation at low voltage.

📦Package Inclusions:

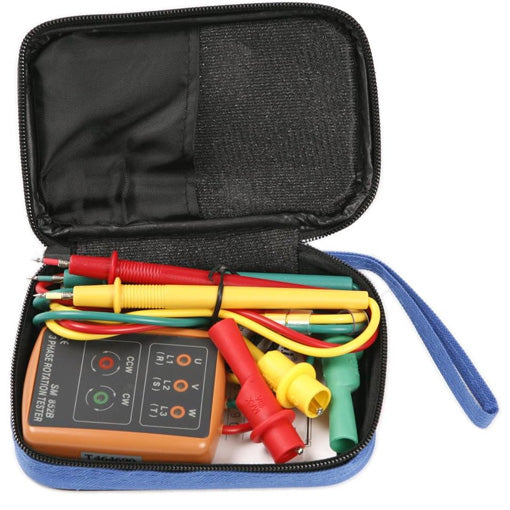

• 1 x 3 Phase Sequence Presence Rotation Tester

• 1 x Storage Bag
