All-in-One Fiber Solution!

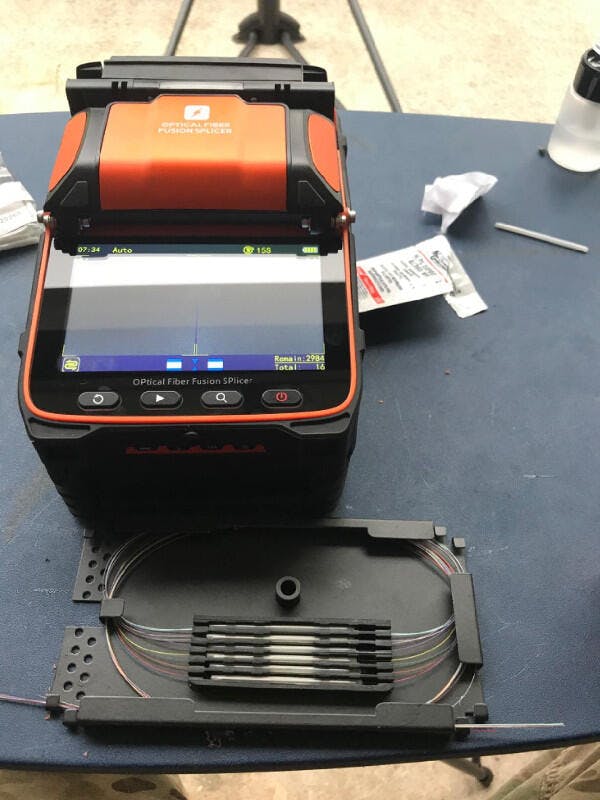

I’ve done 96 low-loss splices so far using both 900 and 250 micron SM fibers. It works great. I just lowered the heater slightly for the room temp, which was easy to adjust. The app makes setup and splicing super simple.  The built-in tool storage is very handy. Haven’t tried MM yet, but I’m sure it’ll be fine. For the price, this splicer is a great buy!”
-Liam B.

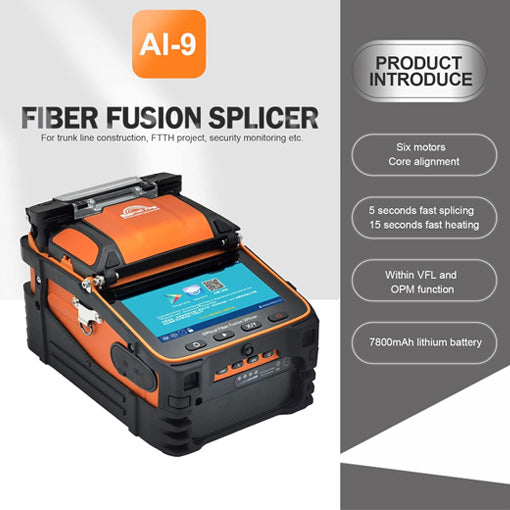

Why Get Our Optical Fiber Fusion Splicer?

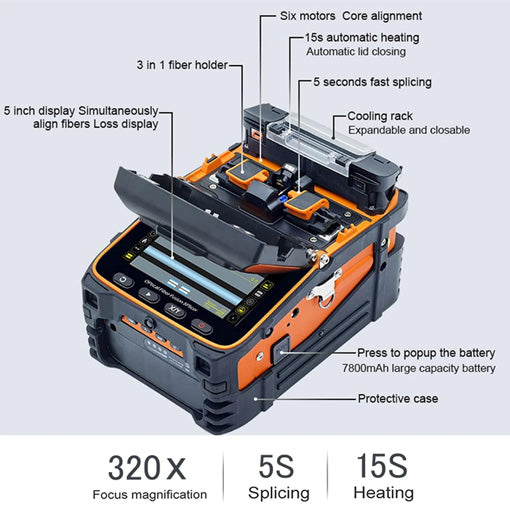

✅ Splice Any Fiber Fast and Clean: Switching fiber types can be confusing and lead to errors or signal loss. This splicer fixes that by using a 3-in-1 holder for SM, MM, bare fiber, drop cable, jumper fiber, and more. It aligns fiber automatically using six motors and splices in just 5 seconds, delivering ultra-low splice loss as low as 0.01dB to 0.04dB. You can use it for any job — FTTH, trunk lines, or fiber repairs — and get fast, clean results every time.

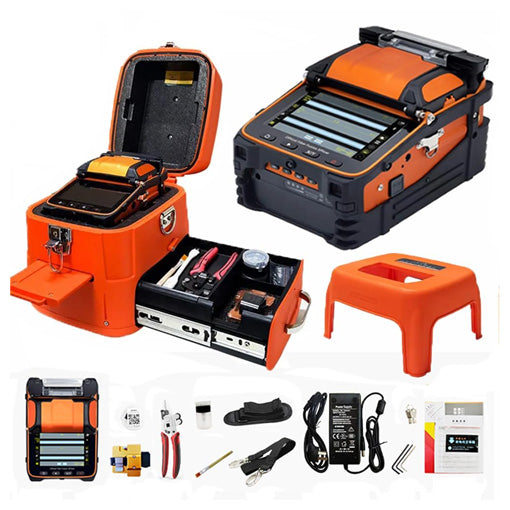

✅ Complete Toolkit Included: This splicer comes with everything you need to get started right away. It includes a fiber cleaver, spare electrodes, 4-in-1 fiber stripper, hex key, alcohol bottle, cleaning brush, power adapter, and straps. All tools are stored in two separate toolboxes inside the carrying case, so everything stays organized and ready to go on-site.

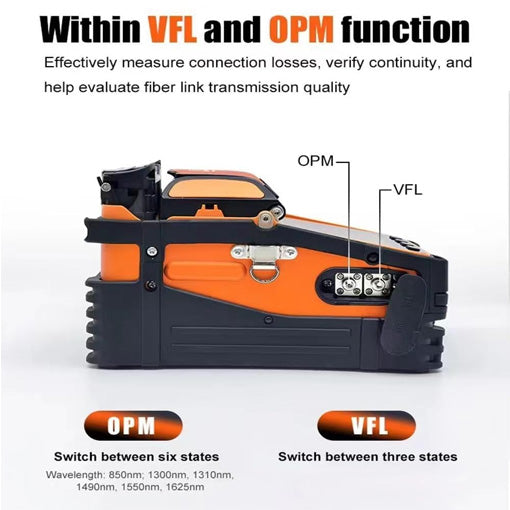

✅ Built-In Testing and Remote Control: Check continuity and fault location instantly with the built-in Optical Power Meter and 15km Visual Fault Locator. Sync splicing data to the cloud, update software, and control settings with the mobile app in 10 languages.

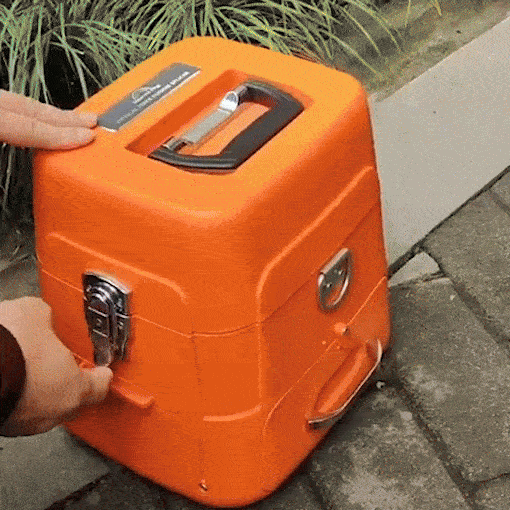

✅ Built to Work Anywhere: The industrial quad-core chip keeps it fast with no lags. The 7800 mAh battery powers up to 200 cycles per charge, and it charges in under 3.5 hours. Comes with a durable two-layer case and runs smoothly from -15 to 50°C and up to 5000 meters altitude

📓FREQUENTLY ASKED QUESTIONS

Q: Can the splicer store and back up splice records?
A: Yes, it syncs all splicing records directly to your phone and offers unlimited cloud storage through the mobile app.

Q: What connectors and fiber sizes does it support?
A: It supports FC, SC, ST, and LC connectors. It handles cladding diameters of 80 to 150μm and coating diameters from 100 to 1000μm.

Q: Does the splicer work in different weather or outdoor conditions?

A: Yes, it operates in temperatures from -15 to 50°C, humidity under 95%, and altitudes up to 5000 meters. It also resists wind speeds up to 15 meters per second, making it reliable for both indoor and outdoor use.

⚙️ Specifications:

• Color: Orange

• Item Weight: 18 lbs

• Batteries: 1 Lithium Polymer batteries required. (included)

• Fiber Alignment: Core/cladding alignment / Manual alignment

• Splicing Time: 5S

• Heating Time: 15s

• Heating Mode: Automatic Heating (Preheating)

• Focus Mode: Six Motors Auto Focus

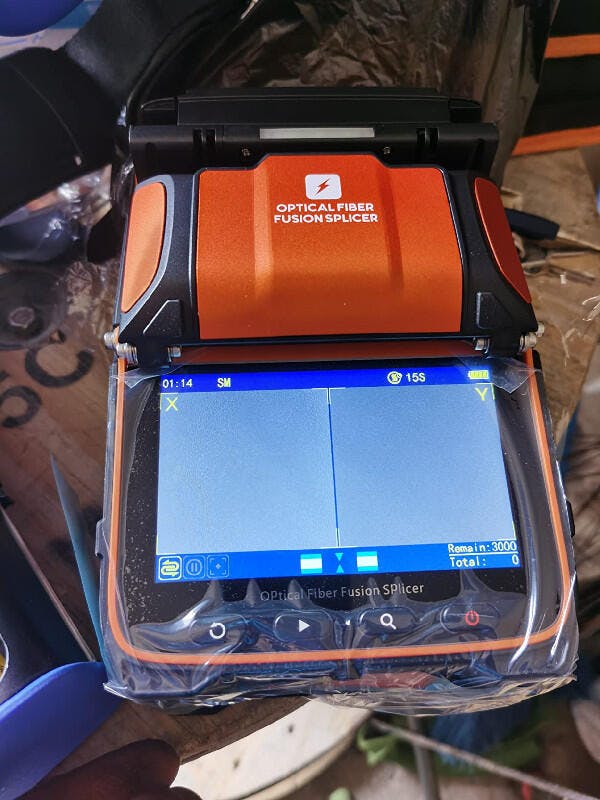

• Screen: 5 inch FTF Color Display

• Built-In Optical Power Meter: Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm

• Measuring Range: -70 ~ +6dB

• Absolute Error: <0.3dB (-50dBm ~ +3dBm Range)

• Built-In Visual Fault Locator: 15km

• Built-In Battery: 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 200 times

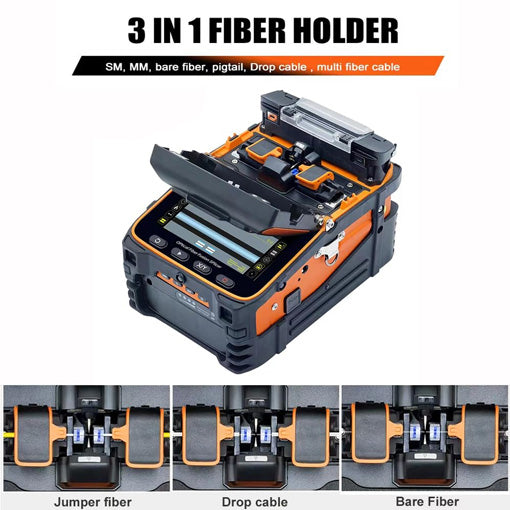

• Fiber Holders: 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable

• Applicable Fibers: SM (G.652 & G.657), MM (G.651), DS (G.657), NZDS (G.655)

• Splice Loss: 0.025dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)

• Return Loss: Better than 60dB

• Shrinkable Tube: 60mm, 50mm, 40mm, 25mm

• Fiber Diameter: Cladding Diameter: 80–150μm, Coating Diameter: 100–1000μm

• Fiber Cleave Length: Coating less than 250µm: 8–16mm, Coating between 250–1000µm: 16mm

• Control Technology: Real-time control and calibration of fusion ARC

• Splicing Record Storage: Synchronize to the phone, the server to cloud storage unlimited

• Software Updates: Automatically update, update by a key

• Boot Time: 1 second

• Power Supply: Input AC100–240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power

• Operating Conditions: Temperature -15 ~ +50℃, humidity <95% RH (no condensation), working altitude: 0–5000m

• Resist Max. Wind Speed: ≤ 15m/s

• Magnification: 300 for X or Y view, 150 for X or Y view

• Splicing Mode: Norma/High Precision Splicing

• Splicing Method: Fully Automatic, Step by Step Splicing

• Languages: English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic

• Product Dimensions: 14.9 x 13 x 12.3 inches

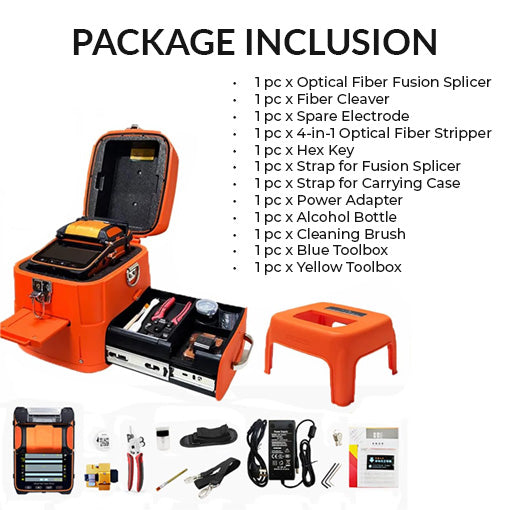

📦Package Inclusion:

• 1 pc x Optical Fiber Fusion Splicer

• 1 pc x Fiber Cleaver

• 1 pc x Spare Electrode

• 1 pc x 4-in-1 Optical Fiber Stripper

• 1 pc x Hex Key

• 1 pc x Strap for Fusion Splicer

• 1 pc x Strap for Carrying Case

• 1 pc x Power Adapter

• 1 pc x Alcohol Bottle

• 1 pc x Cleaning Brush

• 1 pc x Blue Toolbox

• 1 pc x Yellow Toolbox
